The converter slide slag prevention system primarily consists of a slide slag prevention mechanical system, an infrared slag detection system, a hydraulic drive system, and a media transmission system.
The mechanical system is installed at the converter tapping port. The infrared slag detection system automatically detects slag formation, and non-contact monitoring provides real-time monitoring of the tapping process. When slag formation is detected, an alarm is immediately issued and a signal is sent to the hydraulic system. The media transmission system transmits power and protects the mechanical system, enabling the slide to be quickly opened and closed to prevent slag.

Mechanical system

Features:
※ Quick, online replacement of the main mechanism;
※ Water-cooled hydraulic cylinders reduce hydraulic system temperature;
※ Rail-to-rail pressure transmission ensures smooth operation;
※ Stable pressure with a pressure barrier under high temperatures;
※ Easy assembly and disassembly, minimizing maintenance and ensuring consistent production;
※ Simple structure and low accident rate.

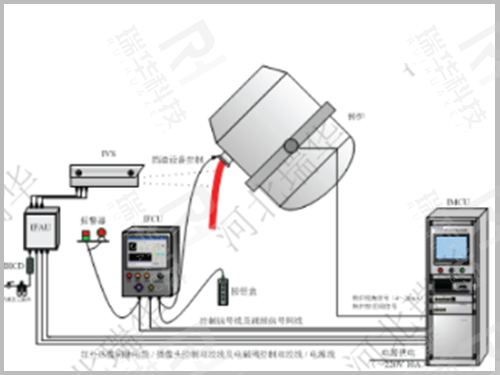

Infrared slag detection system

Features:
※ The infrared camera operates stably at ultra-long distances and has a long service life;
※ Dynamic target tracking, unaffected by alloying;
※ Strong environmental adaptability and proven compatibility with various slag blocking methods.

Hydraulic drive system

Description:
※ The power source required by the mechanical system is provided by a nearby hydraulic station through a rotary joint channel.
※ The infrared slag detection system sends a signal to the hydraulic system, which drives the mechanical system to open or close the slide. The time from signal reception to completion of the action is generally designed to be 0.7-0.9 seconds.
※ The hydraulic station is designed for a maximum system pressure of 25 MPa and a standard operating pressure of 18 MPa.

Applicable to 80-300 ton converters
