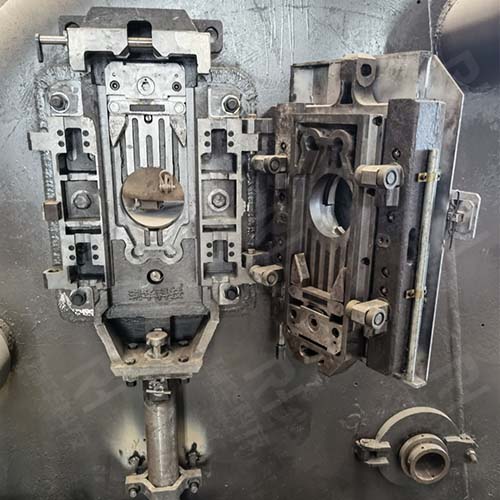

Working Principle of the RHG-B3 Ladle Sliding Gate:

The mechanism primarily consists of a base assembly, a slider assembly, a bracket assembly, a drive assembly, and a refractory assembly.

The base assembly is fixed to a mounting plate. The slider, equipped with wheels, moves on the bracket track. Pressure is automatically built up by driving the slider wheel on the track ramp. A hydraulic cylinder drives the slider assembly in reciprocating motion. The wheels and track move relative to each other, and the slide opens and closes, thereby throttling the molten steel.

RHG-B3 Ladle Sliding Gate Product Features:

1. The bracket and slide can be quickly replaced online.
2. The slide is automatically tightened by a master hydraulic cylinder, ensuring consistent casting and hot-drying strokes.
3. Pressure is transmitted through surface contact between slides, ensuring stable force transmission.
4. The cam rotates 180 degrees to tighten the slide, making operation quick and easy.
5. Integrated installation reduces preparation time.
